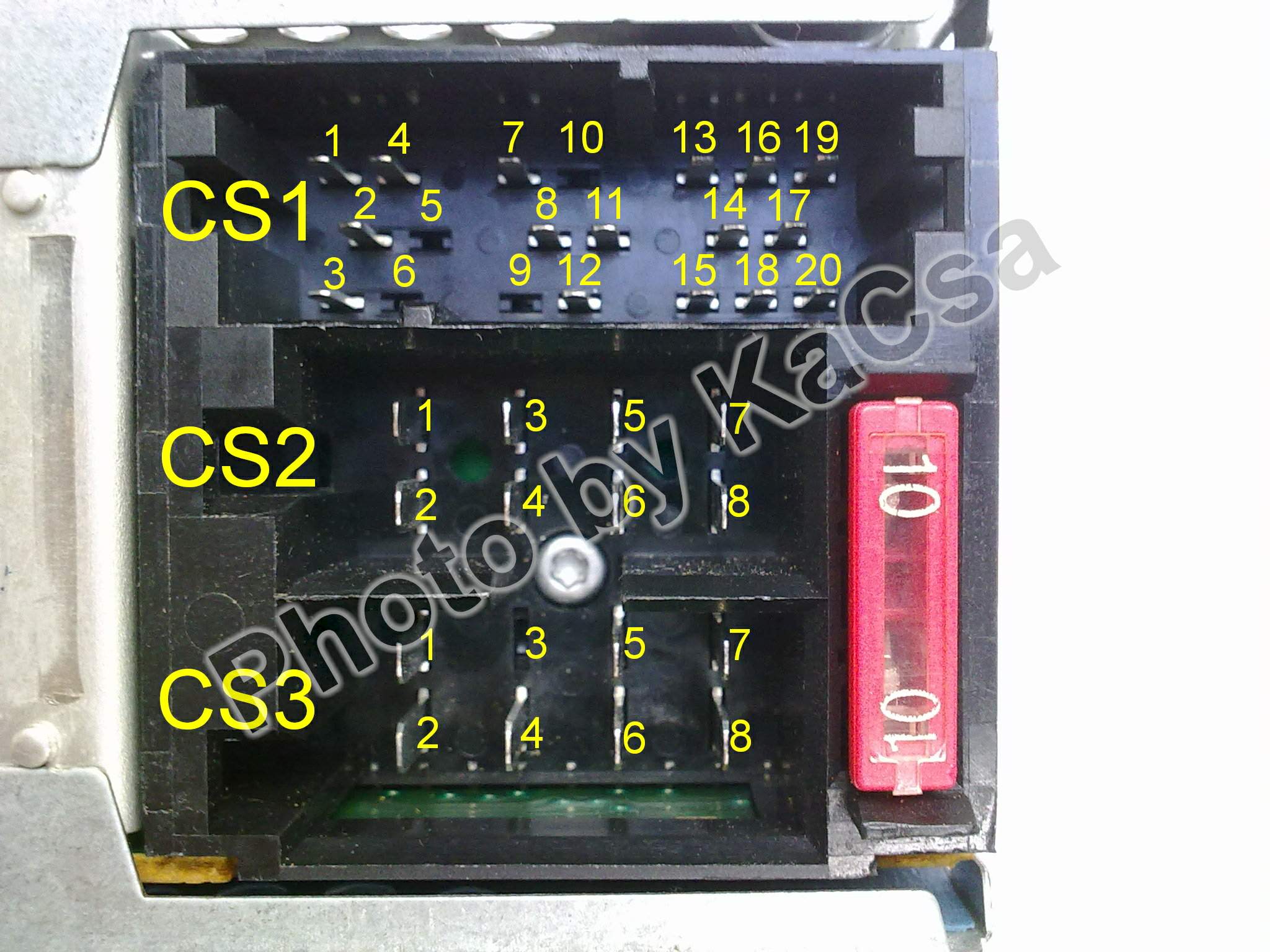

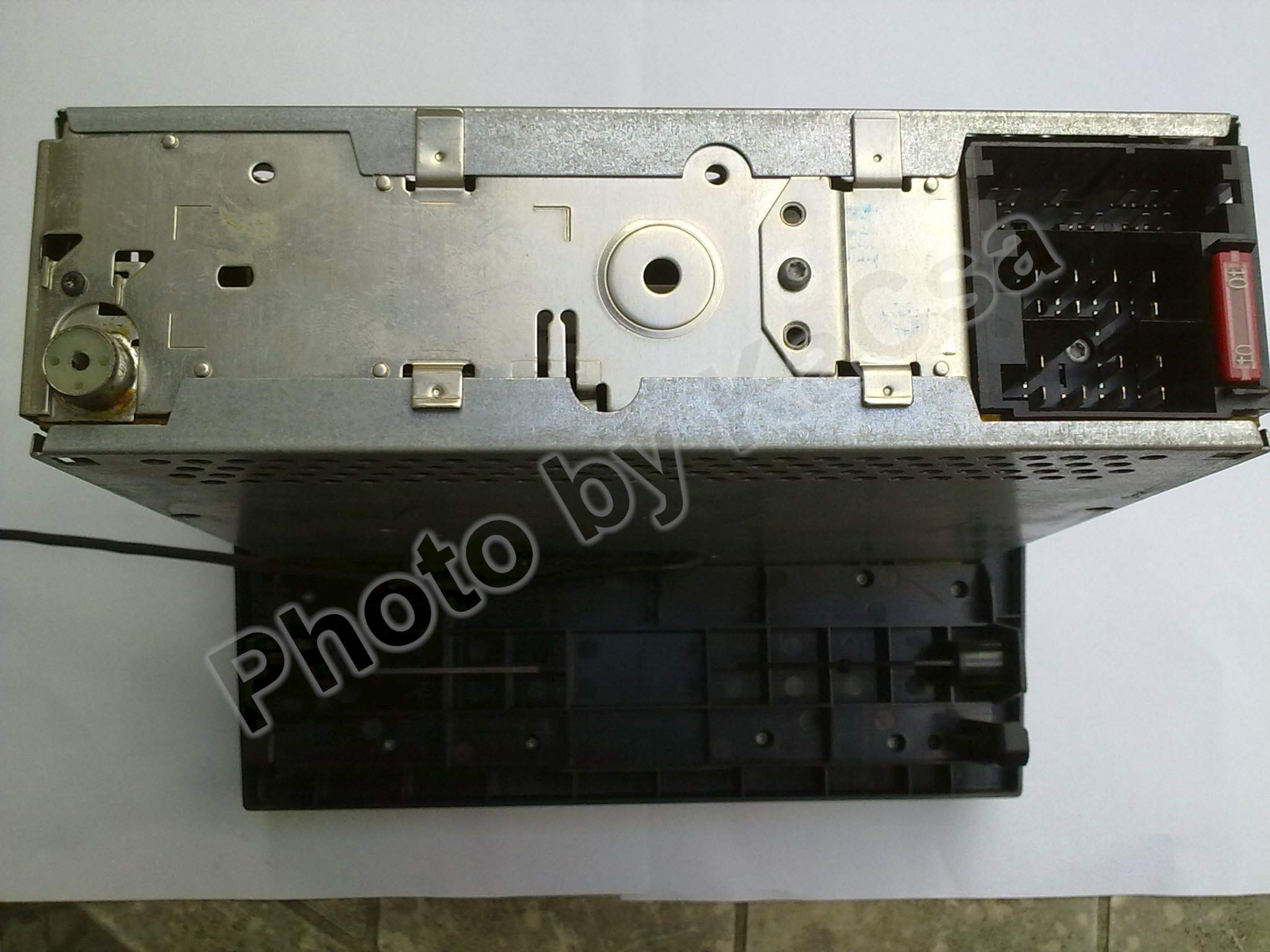

CS1 |
|
|
1 |
DISPLAY_MRQ |
|
2 |
DISPLAY_SDA |
|
3 |
DISPLAY_SCL |
|
4 |
NC |
|
5 |
NC |
|
6 |
NC |
|
7 |
TELPHONE
AUDIO INPUT |
|
8 |
NC |
|
9 |
TELEPHONE
MUTE |
|
10 |
NC |
|
11 |
NC |
|
12 |
NC |
|
13 |
CD_CHANGER
ASCI INPUT |
|
14 |
CD_CHANGER
ASCI OUTPUT |
|
15 |
CDC
PERMANENT +12V |
|
16 |
CDC
SWITCHED +12V |
|
17 |
CDC
GROUND |
|
18 |
CDC
AF GROUND |
|
19 |
CDC
AF INPUT 2V/6KOhm (L) |
|
20 |
CDC
AF INPUT 2V/6KOhm (R) |
|
CS2 |
|
|
1 |
SPEAKER
OUTPUT (RR +) 4Ohm |
|
2 |
SPEAKER
OUTPUT (RR -) 4Ohm |
|
3 |
SPEAKER
OUTPUT (RF +) 4Ohm |
|
4 |
SPEAKER
OUTPUT (RF -) 4Ohm |
|
5 |
SPEAKER
OUTPUT (LF +) 4Ohm |
|
6 |
SPEAKER
OUTPUT (LF -) 4Ohm |
|
7 |
SPEAKER
OUTPUT (LR +) 4Ohm |
|
8 |
SPEAKER
OUTPUT (LR -) 4Ohm |
|
CS3 |
|
|
1 |
SDV
(GALA) |
|
2 |
STEERING
WHEEL CONTROL INPUT |
|
3 |
NC |
|
4 |
IGNITION
PLUS |
|
5 |
AUTOMATIC
ANTENNA |
|
6 |
ILLUMINATION |
|
7 |
PERMANENT
PLUS |
|
8 |
GROUND |
